TQ 4T
Precision Multi-Sensor UAV Platform
Payload-Capable Design
Engineered to carry and stabilize multi-sensor payloads during extended operations.
Multi-Sensor Integration
Supports thermal imaging, optical zoom, laser ranging, and intelligent gimbal systems.
Stable Hover & Tracking
Optimized flight control ensures smooth hovering and continuous target observation.
All-Weather Operation
Reliable performance across day, night, and low-visibility conditions.
Advanced Four-Sensor Gimbal
48MP · 160× Hybrid Zoom
High-resolution visible imaging combined with extreme zoom enables clear long-range identification of personnel, vehicles, and ground objects.
Thermal Imaging 640 × 512
Thermal sensing detects human and vehicle heat signatures in darkness, smoke, and low-visibility environments.
1.2 km Laser Rangefinding
Accurate distance measurement provides precise spatial awareness and reliable target localization at long range.
6 TOPS AI Processing
Onboard AI processing enables automatic target recognition, intelligent tracking, and continuous multi-sensor fusion.
Stable Flight Platform
The Tianquan 4T airframe is engineered for stability, durability, and reliable payload performance.
Optimized propulsion and flight control systems ensure smooth operation, even in dynamic wind and flight conditions.
- Carbon-composite structure
- Optimized propulsion layout
- Precision gimbal stabilization
WHAT OUR CUSTOMERS SAY

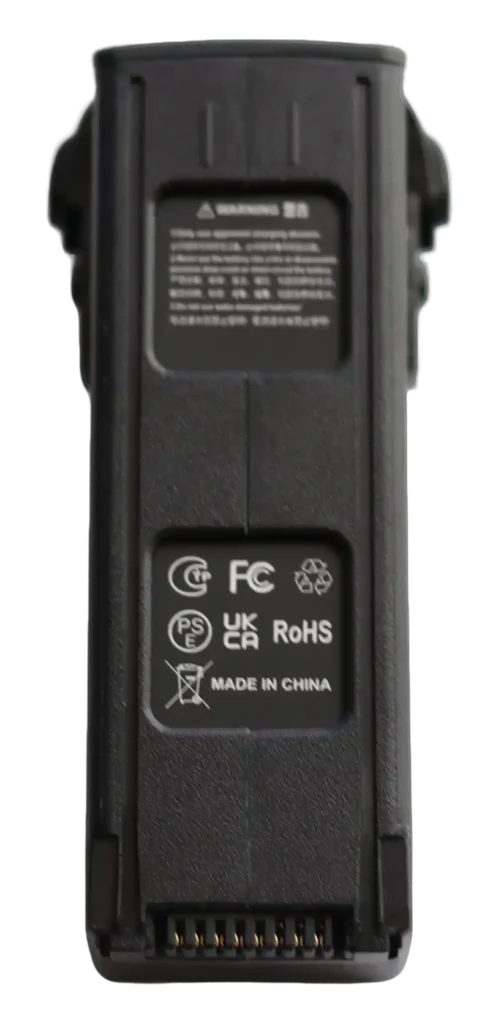

Battery & Endurance
10,000 mAh high-capacity battery supports up to 70 minutes of effective flight time.
Optimized power management ensures stable endurance with operational payloads.
Stable Long-Range Data Link
Up to 15 km transmission range with stable command, telemetry, and video link.
Designed for reliable operation in complex and interference-prone environments.

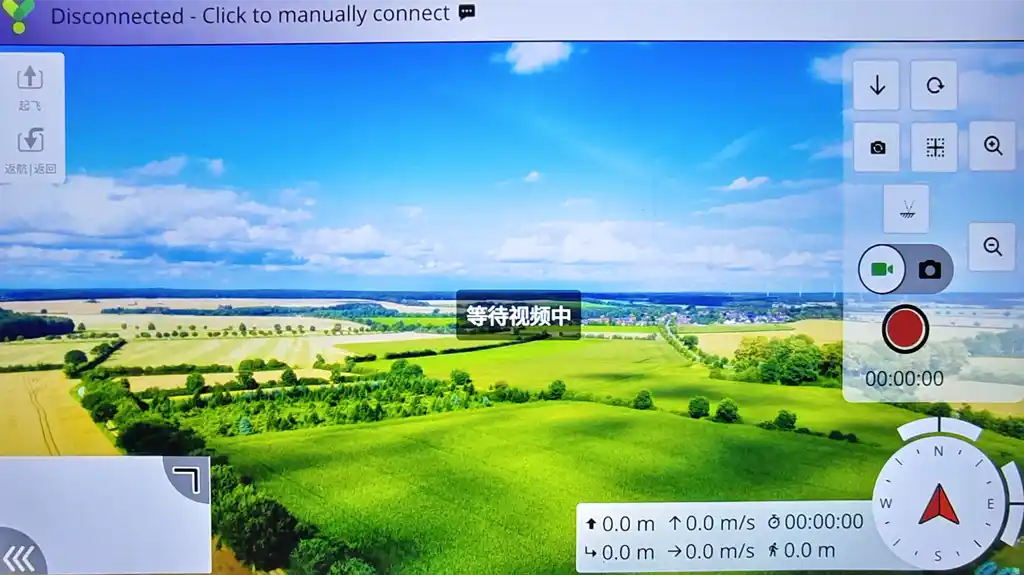

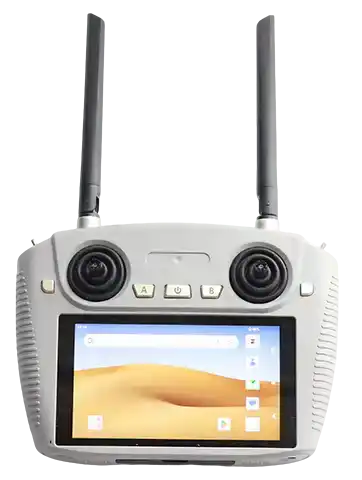

User-Friendly Ground Control Station
Intuitive ground control software supports split-screen operation, automatic patrol, mapping, obstacle avoidance, and intelligent task execution.
Open architecture enables software development and workflow customization.
| Camera Specifications | ||
| Visible Light Camera | Sensor Wide-Angle Focal Length Zoom Camera Focal Length | ½” SONY CMOS, Effective Pixels: 48 MP 24 mm Hybrid Zoom 22×, Max Zoom 160× 81–270 mm |
| Thermal Camera | Sensor & Focal Length 640 × 512, 13 mm | |
| Photo Resolution | 1200 / 2000 / 2400 / 4800 | |
| Video Resolution | 4000 × 3000 @ 30 fps | |
| Laser Rangefinder | 1200 m (Optional upgrade: 1500 m / 2000 m) | |
| Onboard Computing | 6 TOPS Human & Vehicle AI Recognition and Tracking Non-specific target tracking capability | |
| Target Localization & Tracking | YES Optional upgrade: Swarm Command Capability | |
| Local Storage | 128 GB | |
| Aircraft Specifications | ||
| Wind Resistance | Level 6 | |
| Maximum Takeoff Weight | 1500 g | |
| Operating Temperature | –40 ~ 50 ℃ | |
| Wheelbase Package Size | 410 mm (Unfolded Size: 510 × 495 × 255 mm) 400 × 300 × 200 mm | |
| Protection Rating | IP44 | |
| Aircraft | Maximum Horizontal Speed 21 m/s 6000 mAh battery, Flight Time 40 min (Optional upgrade: 10,000 mAh) GPS / BEIDOU / GALILEO / GLONASS | |
